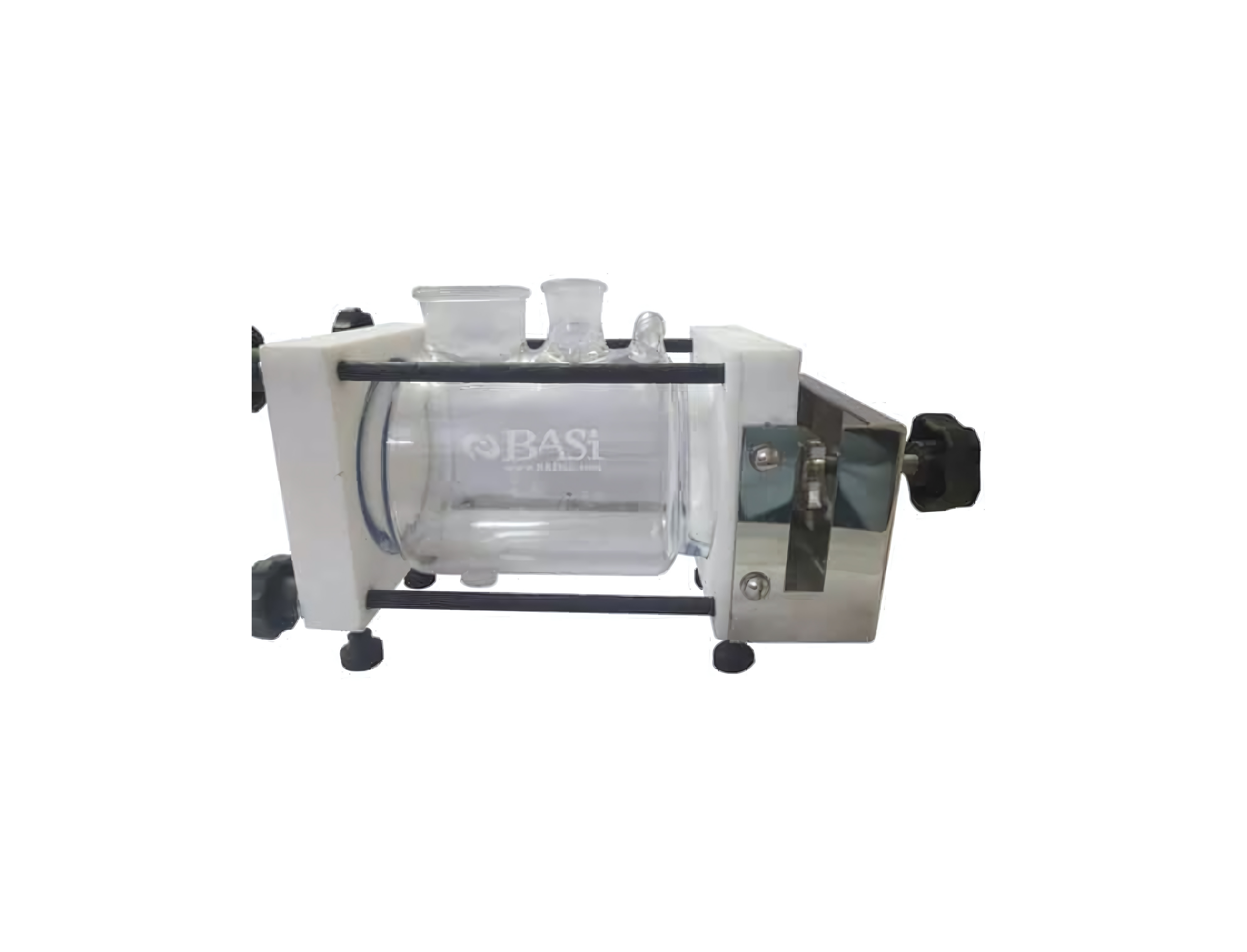

BASi Corrosion Cell for Flat Samples

BASi Corrosion Cell for Flat Samples

horizontally mounted corrosion cell set-up
  • (re)place a sample < 10 seconds
  • Perfect for high-throughput research
  • Gas-tight
  • 250 ml
Quantity

  • The IP-U-CCG-FS250 is a fully equipped, horizontally mounted corrosion cell set-up that can be used with any PalmSens Potentiostat / Galvanostat / Impedance Analyzer. Rather than a dedicated sample holder, the sample coupon can be easily mounted or replaced onto the cell in less than 10 seconds. This set-up heavily suits the corrosion scientists, analysts and researchers that have a high through-put requirement for conducting analysis on coupons with square, rectangular, circular, or any other shapes. The construction is typically gas-tight, has dedicated ports for electrode insert, and is also available in a jacketed version for thermal control.

    Coupon Dimensions :

    • The available exposed surface area is 1 cm2.
    • Minimum requirements: Circular (16 mm diameter) or Square (4 mm x 4 mm).
    • Thickness requirements: 0.5mm to 8 mm.

    Wet Parts:

    Glass & silicon and thus, no limitations due to pH of electrolyte.

    Includes :

    • A 250 mL glass reservoir
    • 6 mm diameter graphite rod counter electrode
    • a stainless-steel SS430 coupon for sample analysis,
    • lugging capillary
    • And all the other accessories for plug n play analysis

    Related applications

    • All types of EC based corrosion analysis for square, rectangular & circular coupons
    • High through-put analysis that require fast and easy assembly / disassembly process
    • Corrosion measurements with thermal control between 3ºC to 90ºC
    • Completely acrylic version available for highly corrosive environments
    • Corrosion measurements in organic solutions

    Recommended Optional Items

    • Reference Electrodes (Aqueous or Non-Aqueous)
    • Auxiliary (Counter) Electrodes

  • Brand : BASI

    Accessory type : Corrosion Studies, Cell

    Compatible with : EmStat Pico Development Kit, EmStat2, EmStat3, EmStat3 4WE, EmStat3 Blue, EmStat3+, EmStat3+ Blue, EmStat4M HR Development Kit, EmStat4M LR Development Kit, EmStat4R, EmStat4S HR, EmStat4S LR, EmStat4X HR, EmStat4X LR, MultiEmStat3, MultiEmStat3+, MultiEmStat4 HR, MultiEmStat4 LR, MultiPalmSens4, PalmSens2, PalmSens3, PalmSens4, Sensit BT
